JD Filtration Polypropylene Melt Blown Filter Cartridges deliver consistent filtration of fluids in a wide range of applications. The proprietary melt blowing process allows JD to optimize the filtration properties of the element while maintaining very robust mechanical properties. All polypropylene components construction provides excellent chemical resistance to bases, acids, salts and many organic solvents in a broad range of processes. customized surface treatment brings larger filtration area and longer service life.
Features and Benefits:
100% polypropylene construction provides excellent chemical compatibility with a variety of process fluids and applications
Graded pore construction provides optimum particle retention and prevents media migration, ensures consistent filtration performance
Free of binders, additives and lubricants
Low pressure drop, high dirt holding capacity and long service life
Manufactured by FDA grade polypropylene resin
Material:
Filter Medium: Micro polypropylene fiber
Core: Coreless or reinforced Polypropylene
Cage: Reinforced Polypropylene
End caps: DOE or SOE
Sealing: Silicon, NBR, EPDM, Viton
Dimension:
Outside Diameter: 2.5’’ (6.4 cm)
Inner Diameter: 1.1’’ (2.8cm)
Micron Rating: 0.1μm, 0.5μm, 1μm, 3μm, 5μm, 10μm, 20μm, 25μm, 50μm
Length: 9.75’’, 10’’, 20’’, 30’’, 40’’, 50”, 60”, 70”

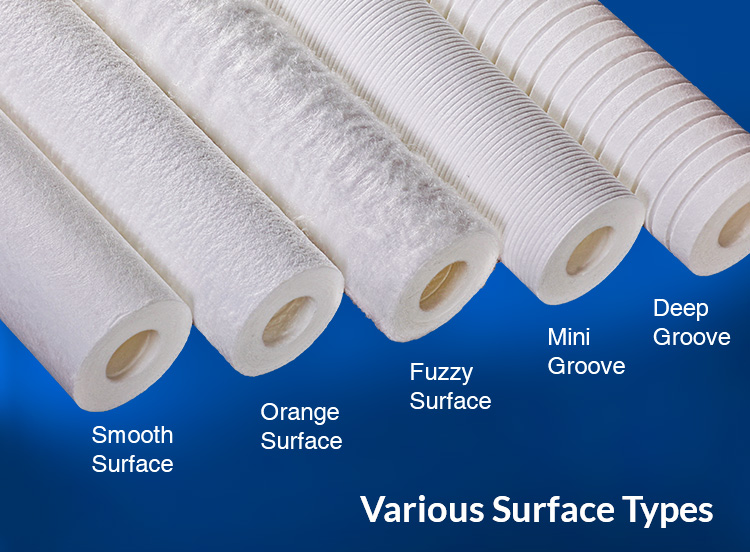

Surface Treatment: Flat, Embossing, Grooved
Recommended operation condition:
Maximum Operating Temperature: 82℃
Maximum Operating Pressure: 4.0 bar at 25℃
Recommended Change-Out Differential Pressure: 2.4bar
Typical Application:
RO Pre-Pretreatment
Food and Beverage Processing
Cooling Water
Municipal & Potable Water Systems
