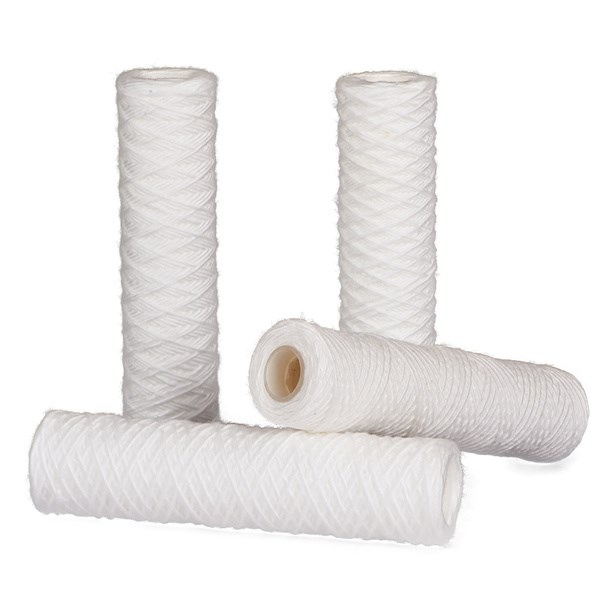

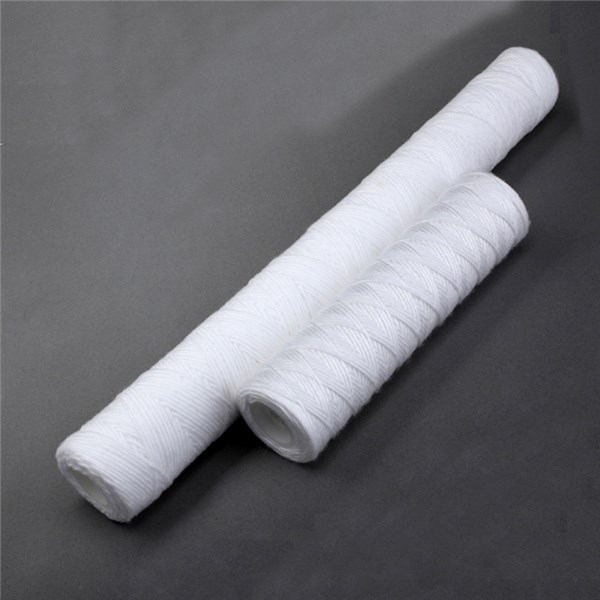

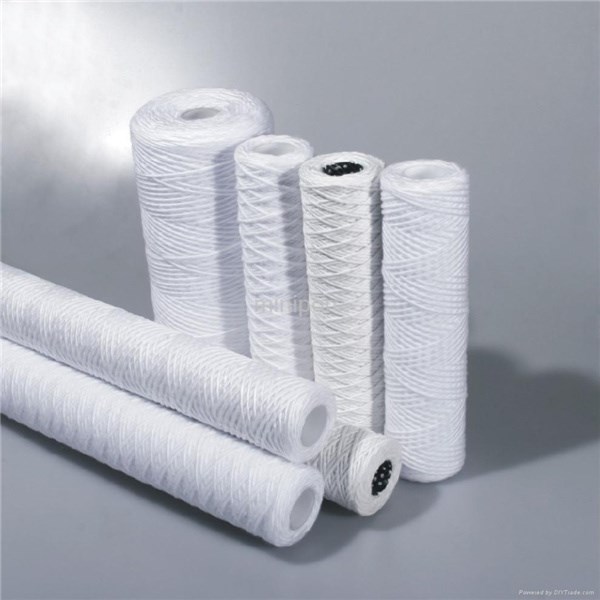

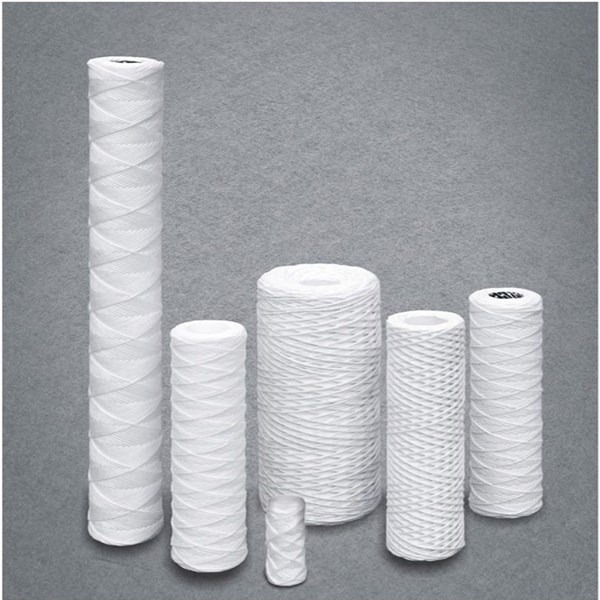

String Wound Filter Cartridges

Features and benefits：

• Graded density structure:

• Higher contaminant holding capacity

• Selective entrapment of contaminant throughout the filter to maximize lifetime

• Homogeneous and fluffy raw material

• Lower pressure drop for higher flow rates

• High product throughput for extraordinarily long service life

• Robust cartridge construction

• Better performance in harsh environments

• Wide range of sizes and precision

• Chemical inertia components

• Compatible with a wide range of solvents and cleaning solutions

• Components free of adhesives and surfactants

• Very low extractable levels

• Board chemical compatibility for most aggressive process applications

Specification:

• Filter Medium:        Polypropylene/Cotton

• Outer Diameter:     63 mm

• Inner Diameter:      28 mm / 30 mm

• Core: Reinforced Polypropylene, 304 Stainless Steel, 316 Stainless Steel

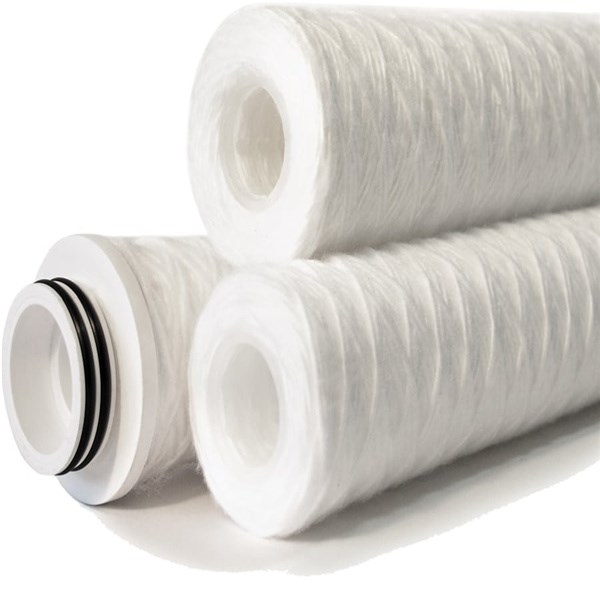

• End Caps： Polypropylene

• Sealing:                    Silicon, EPDM, NBR, Viton

Recommended Operating Conditions:

• Maximum Temperature:    Polypropylene: 176℉ (80℃), Cotton: 248℉ (120℃)

• Maximum Pressure:       61psi (4.2bar) @ 68℉ (20℃)

Typical Application:

• SWRO/BWRO desalination plant

• RO pre-filtration

• UF pre-filtration

• Chemical solvent filtration

• Food and Beverage Processing

• Reinjection Water (Oil & Gas)
