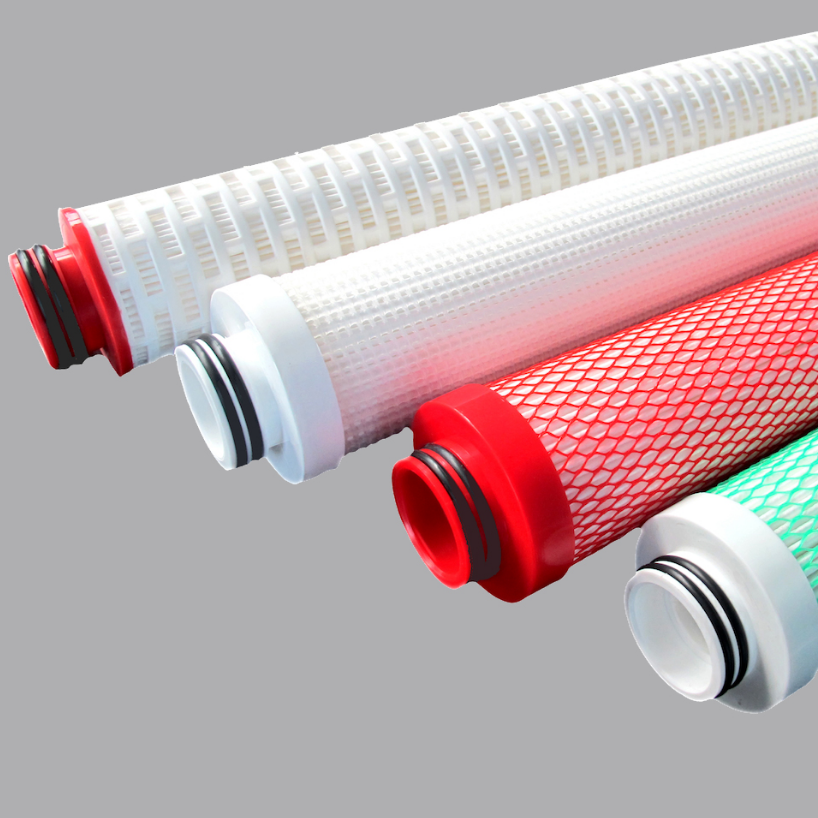

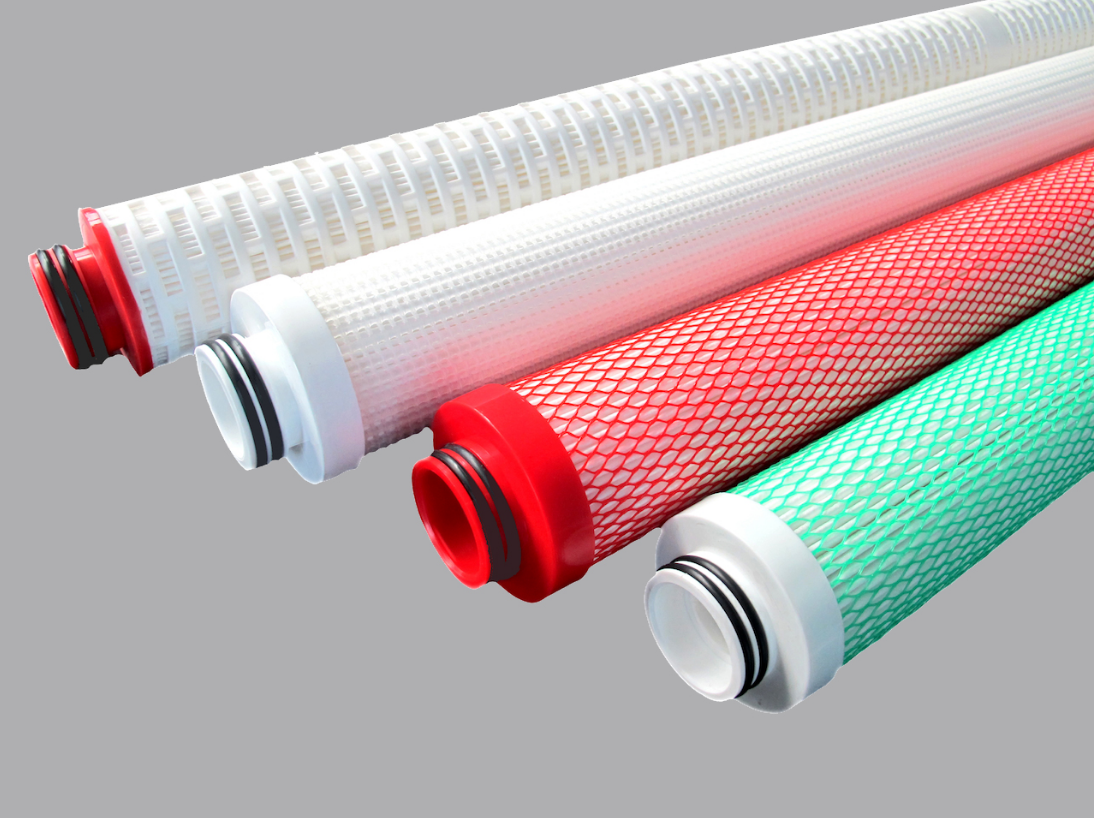

Oil Pleated Cartridge Filter is made by glass fiber material and special structure. It would be mainly used Oil field filtration. As glass fiber have good performance to absorb oil from wells’ water, It have cage and net as option for different application.
Feature:
Glass Fiber + Polypropylene Material
Good oil absorb feature
High flow rate and dirty holding capacity
Application:
Fine Chemical
Amine
Petro Chemical
Solvent based
paints & coatings
High Temp Water
| Material Construction | |
| Filter Media | PP/Glass Fiber |
| Cage | PP Cage/PET Mesh |
| Core | PP/SS 304/SS 316 |
| End Cap | PP/ABS |
| Specification | |
| Length | 20’’,40’’,60’’ |
| Micron Rate | 1μm~20μm |
| Diameter -OD | 152mm |
| Operation Condition | |
| Max. Pressure Drop | 0.5Mpa @25℃ 0.3Mpa @65℃ |
| Max. Working Temp. | 80℃ |
| Change-Out Pressure Drop | 0.25Mpa |
