Propure-P High Flow--Replace Pall Ultipleat High Flow Filter Cartridges

Material:

• Filter medium: Polypropylene/ Glass micro fiber

• Inner Core:      Reinforced Polypropylene

• End caps:        Reinforced Polypropylene

• O-ring : NBR/EPDM/Silicone/Viton

• Cage: PP/Net/SS/Bonding

Dimension:

• Outer Diameter: 6″/ 152mm

• Removal Rating : 1μm, 3μm, 5μm, 10μm, 30μm, 50μm, 70μm

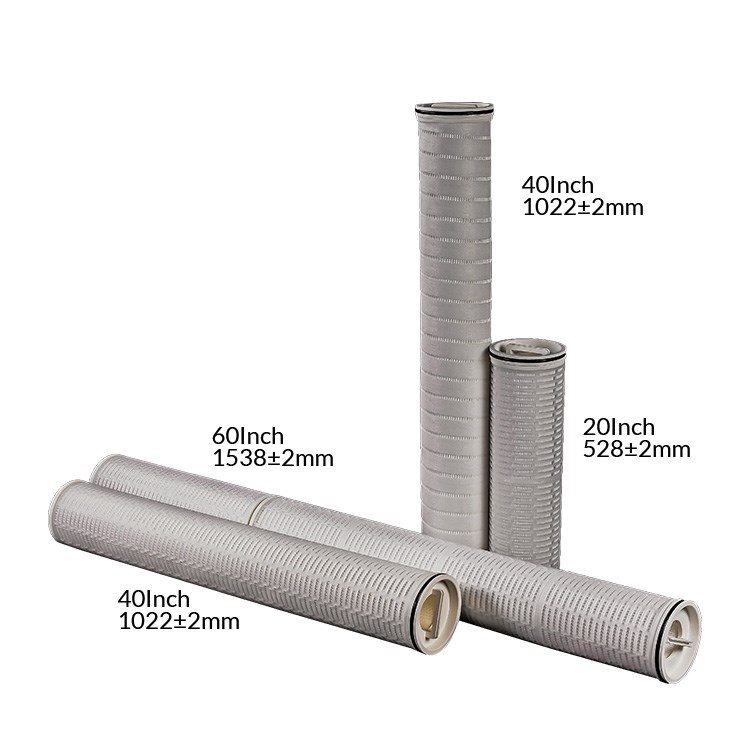

• Length : 20″, 40″, 60″

• Filtration Area: 3.3 m², 6.5 m², 9.8m²

Recommended operation condition:

• Maximum Temperature:  PP: 4 bar@82℃, GF: 3.4 bar@121℃

• Maximum Pressure: PP: 82℃, GF: 121℃

• Maximum Flow rate: 660LPM@20” 1300LPM@40”, 1900LPM@60”

• Recommended Change-out Differential Pressure: 2.4 bar @20 ℃

Typical Application:

• Water Treatment: Pre reverse osmosis, UV protection, Resin trap, Cryptosporidium removal

• Food and Beverage: Bottled water, Beers, Wines, Flavors, Polishing lines, General clarification

• Fine Chemicals: Polymers, Acids, Bases, Solvents
