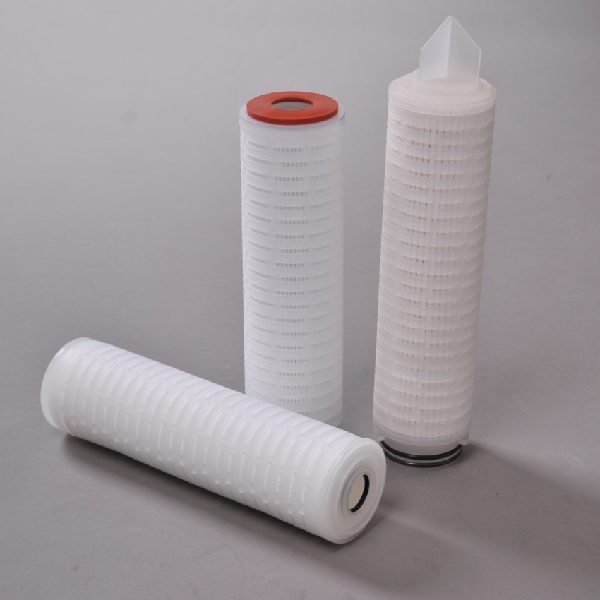

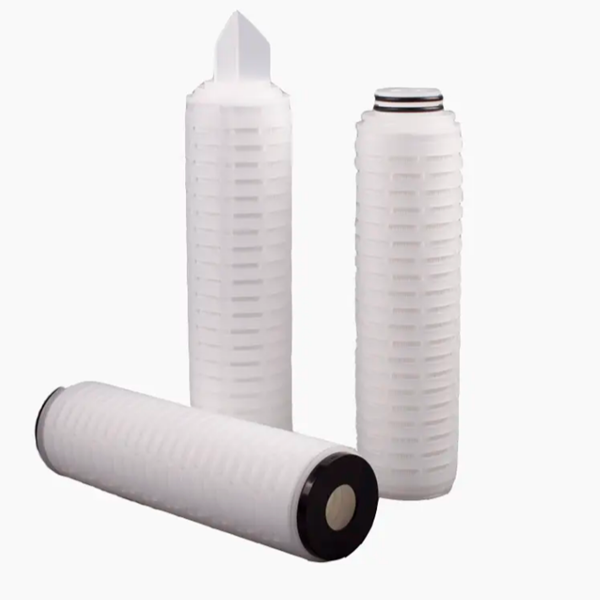

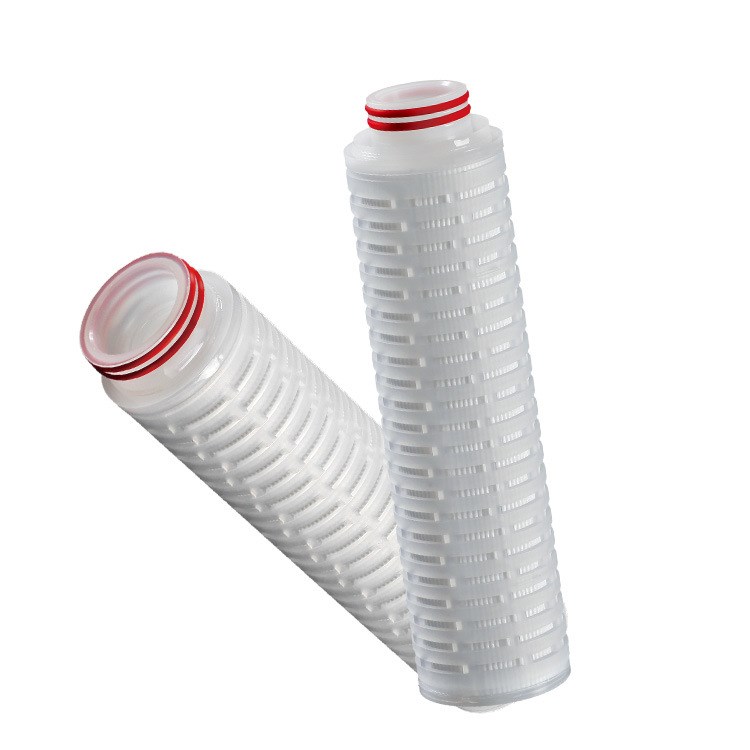

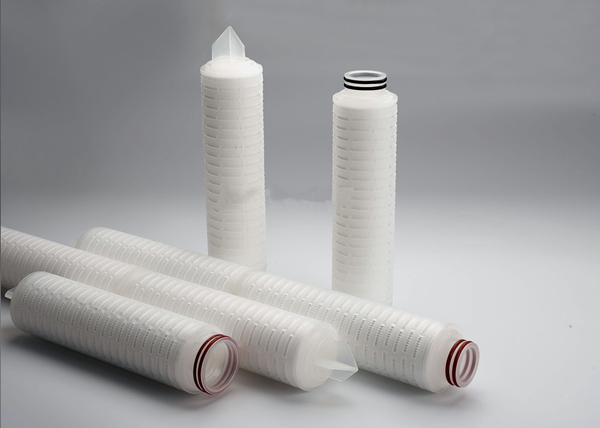

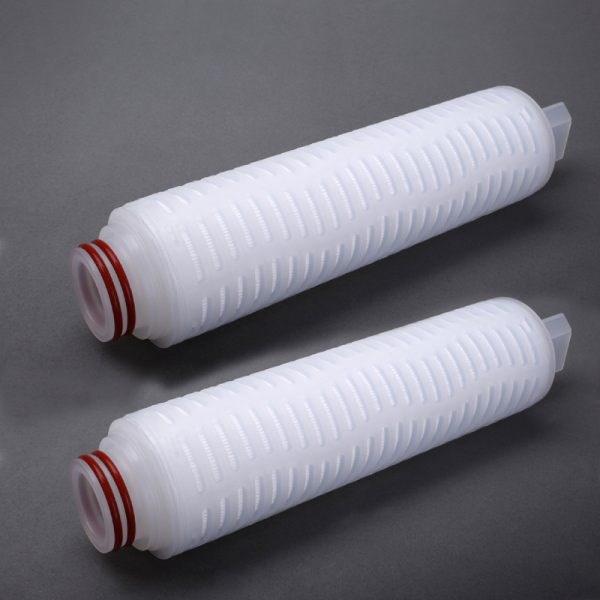

PES Filter Cartridges

Material:

• Filter Medium:                High porosity hydrophilic polyether sulfone membrane

• Inner Core:                    Reinforced polypropylene, Stainless Steel

• Outer Cage:                   Reinforced polypropylene

• End caps:                     Reinforced polypropylene, PP with 316L SS insert

• Gasket/O-rings:              Silicon/Viton/NBR/EPDM

Dimension:

• Outer Diameter:               2.7” (68mm)

• Inner Diameter:                1.3” (33mm)

• Micron Rating:                 0.2μm, 0.45μm, 0.65μm, 0.8μm, 1μm, 1.2μm

• Length:                       5”, 10”, 20”, 30”, 40”

• Effective Filtration Area:   0.65 m² / 10”

Operation condition:

• Maximum Temperature:         80℃

• Maximum Differential Pressure: 4.2bar @ 25℃

• Maximum Differential Pressure: 1.0bar @ 80℃

Sterilization:

• In-Line Steam Sterilization:     121℃, 30mins, multiple cycles

• Autoclaving:                  121℃, 30mins, multiple cycles

Safety:

• Bacterial Endotoxin:           ≤0.25EU/ml

• Extractable:                   ≤30mg/10inch

Typical Applications:

• Food and Beverage Processing

• High Purity Chemicals

• Ultrapure Water

• Electronics
