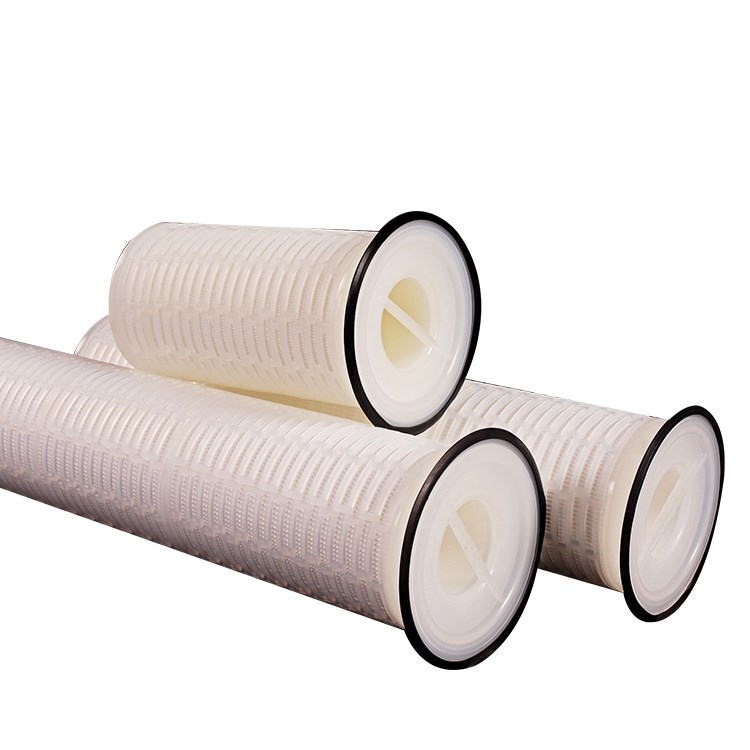

ProPure-B High Flow Cartridge Filter--Replace Pall Maskman Filter Cartridge

ProPure-B High Flow Filter Cartridge is a solution for lowering capital cost and operation cost. With the unique pleat structure, this cartridge come with effective filtration area over 8 times than ordinary bag filter and higher dirty holding capacity. The larger diameter 6 ” (152 mm), single-ended opening can fit your current bag filter housing perfectly with size 1 or size 2 bag filter. So ProPure-B High Flow Filter Cartridge is quite an ideal option for you.

Features and Benefits:

• Fit in most of the size 1 or 2 filter bag housing without need to change

• Diameter 6 “(152 mm) is suitable for large flow and high-volume applications

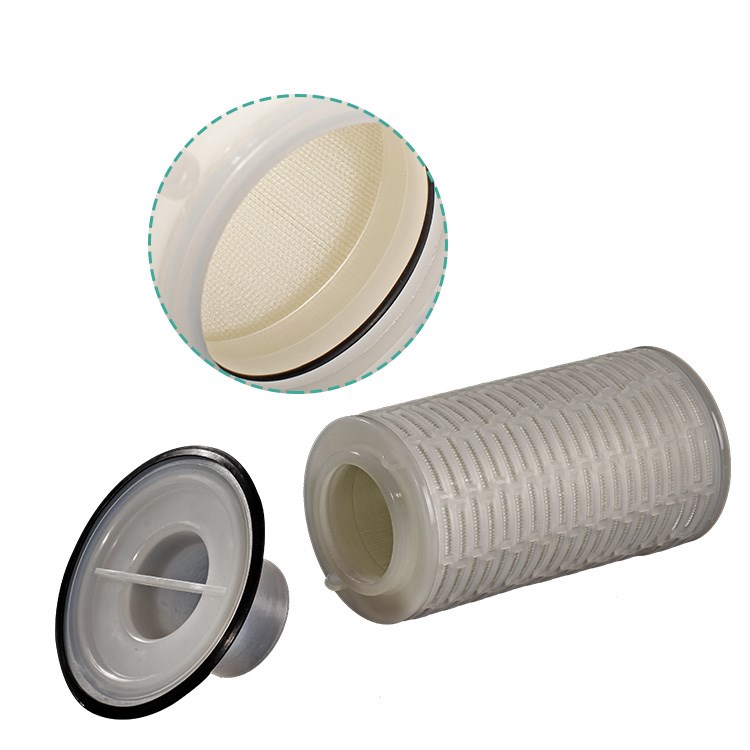

• Unique pleated structure provides larger effective filtration surface area within the space constraints of a standard bag filter basket.

• Dirt holding capacity and retention rate are maximized by pleated multi-layers of filter medium

Material:

• Filter Medium: Imported polypropylene membrane

• Inner Core:  Reinforced Polypropylene

• End caps:       Reinforced Polypropylene

• Gasket/O-rings:   EPDM / NBR

• Construction Method: Welding (No adhesives)

Dimension:

• Outside Diameter: 6” (152.4 mm)

• Flange Diameter:  7” (177.8 mm), 7.2” (183 mm)

• Micron Rating:     1μm, 3μm, 5μm,10μm, 30μm, 50μm, 70μm, 100μm, 120μm,150μm

• Length: 16” (370mm) — replacement of size 1 filter bag

• 32” (634mm) — replacement of size 2 filter bag

Recommended operation condition:

• Maximum Temperature:   80 ℃

• Maximum Pressure:         2.8 bar@60 ℃

• Recommended Change-out Differential Pressure:   2.4 bar @20 ℃

Typical Application:

• RO pre-filtration

• Municipal water

• Boiler Condensate

• Process water (Food & Beverage, Electronics, Pharmaceuticals)
