ProPure-K--Replace Parker High Flow Filter Cartridges

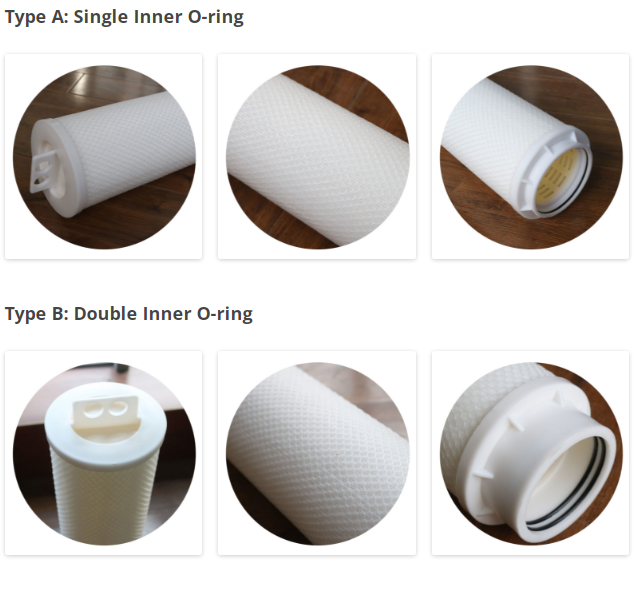

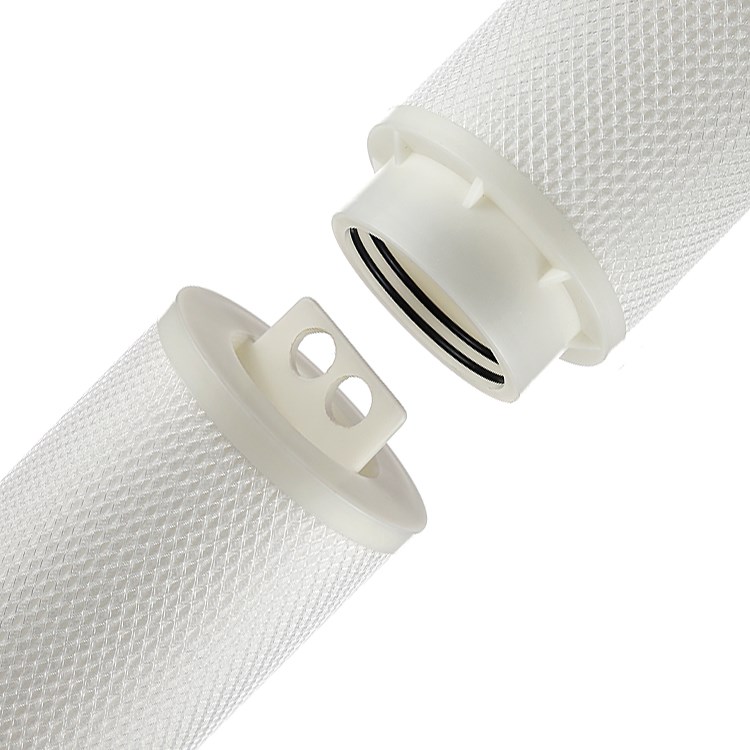

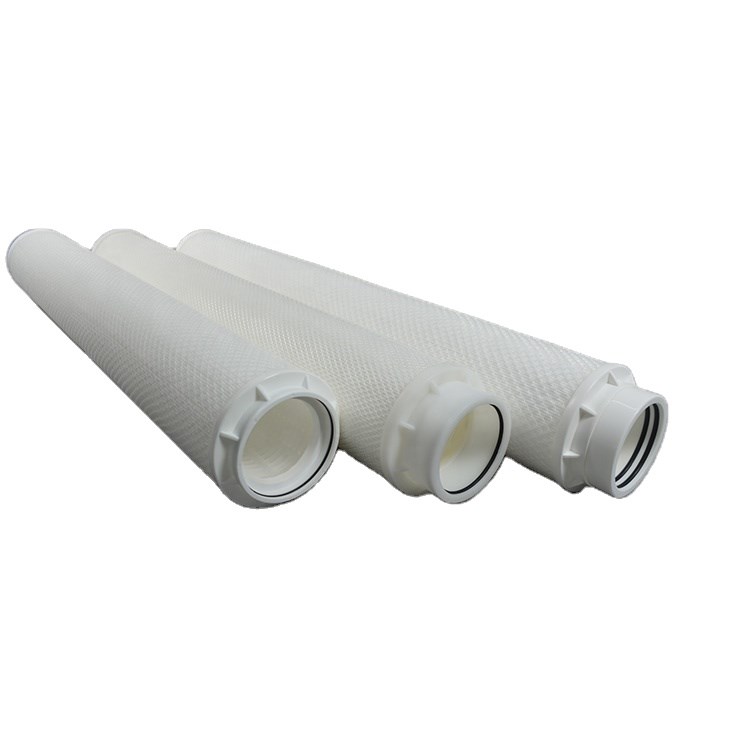

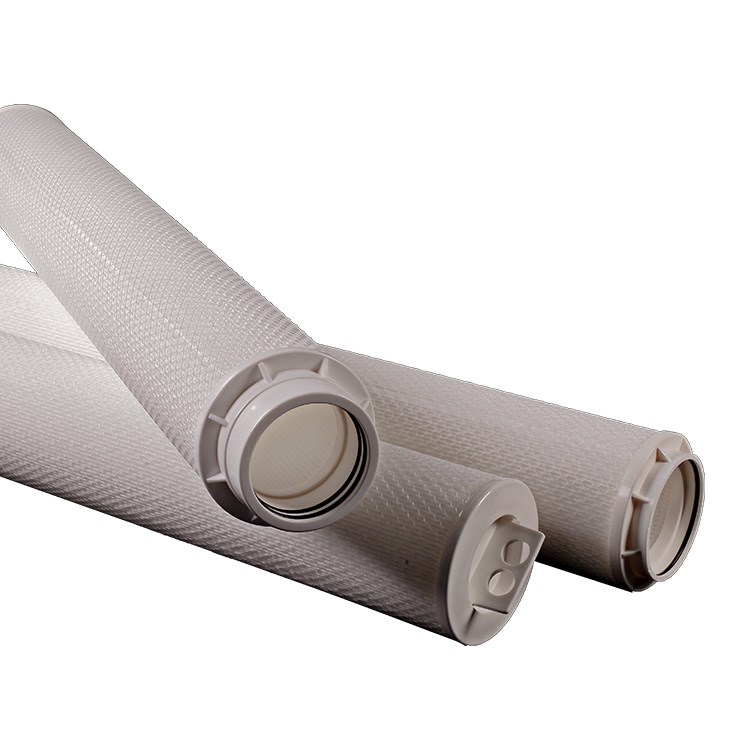

Propure-K High Flow Filter Cartridge is the retrofit of Parker High Flow Filter Cartridges configured two types of end connectors: single O-ring end connector and double O-ring end connector for replacing Parker Megaflow old and new models perfectly. Pleated construction with outside to inside flow direction provides maximum flow rates with the lowest possible pressure drop, larger filtration area and longer service life. But with retrofit hard outer cage, it can stand higher pressure than the original Parker flexible netting cage. JD Filtration aims to offer cost effectly filter cartridges with satisfied quality to our valued clients, so Propure-K High Flow Filter Cartridge is quite an ideal option for you.

EMAIL

Features and Benefits:

  • Higher flow rate. Under the same conditions, the flow rate of one 6-inch high flow filter cartridge is 10 to 15 times higher than standard 2.5-inch diameter depth filter cartridge

  • Thermally bonded multi-layer of 100% polypropylene filter media and support material for wide chemical compatibility and filtration integrity

  • Graded filtration pore sizes assure the high retention rate and long service life

  • Multi-layer pleated construction for lower pressure drop, higher dirt-holding capacity and inner O-ring sealing assures filtration integrity

  • Larger filtration area requires fewer filter elements to lower operation &maintenance cost and friendly handle design for easier change-out to reduce labor cost.

Material:

  • Filter Medium: Polypropylene Depth Membrane

  • Inner Core: Reinforced Polypropylene

  • Outer Cage: Reinforced Polypropylene

  • End caps: Reinforced Polypropylene

  • O-rings: Silicon/ EPDM / NBR/ Viton

  • Construction Method:   Welding (No adhesives)

Dimension:

  • Outside Diameter: 6” (152 mm)

  • Inner Diameter: 3.5” (89 mm)

  • Micron Rating: 1μm, 3μm, 5μm,10μm,20μm,30μm,50μm,70μm

  • Length: 20”(508mm), 40” (1016 mm), 60” (1524mm)

Recommended operation condition:

  • Maximum Temperature: 82℃

  • Maximum Pressure:     3.4 bar (50psi) @ 82℃

  • Recommended Change-out Differential Pressure: 2.1bar @20℃

Typical Application:

  • RO pre-filtration

  • Municipal water

  • Boiler Condensate

  • Coolants

  • Process water (Food & Beverage, Electronics, Pharmaceuticals)
